PE stone grain aluminium sheet description

Table Of Contents SHOW

PE stone grain aluminium sheet adopts the processing technology of spraying or roller coating, and the surface can also be sprayed with real stone paint, which is consistent with the real stone feel.

Common stone patterns are curtain walls PE stone grain aluminium sheet, gray PE stone grain aluminium sheet, 3d PE stone grain aluminium sheet, brick pattern color coated aluminum plates, real stone painted aluminum veneers, etc., special patterns can be customized. Some thinner aluminum plates can be reprocessed, such as 0.5mm, can be made into honeycomb aluminum plates, thermal insulation aluminum-plastic composite plates, etc.

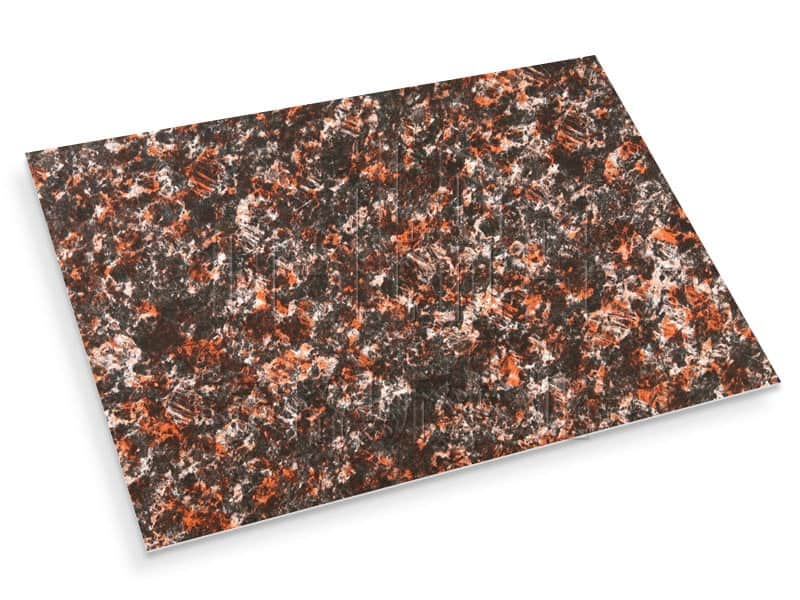

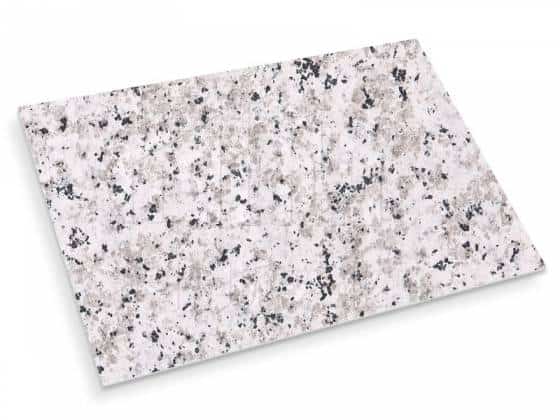

Granite-coated aluminum sheet
Granite-coated aluminum sheet

PE stone grain aluminium sheet produced by STEK are strictly installed in accordance with the national standard inspection. The stone texture is really bright and the same as the stone. It can completely replace the real stone curtain wall panel.

PE stone grain aluminium sheet is the use of advanced spraying equipment, painting technology and digital color printing technology, through precise CNC positioning, patterns are formed during multiple painting and baking processes to overprint the stone grain on the surface of the aluminum sheet metal.

The coating of PE stone grain aluminium sheethas many excellent characteristics such as fingerprint resistant, high weather resistance, antibacterial, long life, antistatic, high durability, preservative, antistatic, high weather resistance etc .

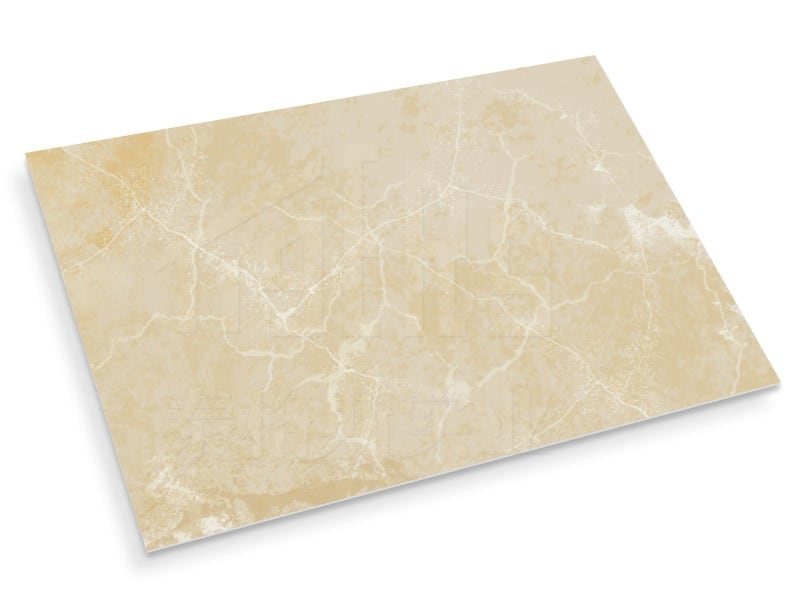

Stone-like aluminum panel with quartz design
Stone-like aluminum panel with quartz design

The sample shall be carried out at the Hainan National Exposure Test Site or an area with equivalent climate environment according to GB/T 9276. The sample shall be placed at an angle of 45° to the south and the test time shall be 10 years.

Aluminum sheet pre-roll coating process

Aluminum sheet pre-roll coating process
Aluminum sheet pre-roll coating process

After special processing,PE stone grain aluminium sheet can resist large impact forces without being damaged. The thinnest stone is only 3-5mm thick and can be used in combination with aluminum plates, while ordinary granite stone plates are about 12mm thick, the overall weight of the stone is heavy and fragile. Therefore, transportation can save a lot of costs. If a large number of stone plates are used in engineering construction, it is the best choice.

Multi-layer painting process

Multi-layer painting process
Multi-layer painting process

Coating thickness: It can be divided into single coating (4μm-20 μm); double coating (25μm-28 μm); 3 coating (35μm-38μm).

PE stone grain aluminium sheet uses advanced spraying equipment, combining spraying technology with digital color printing technology. Through precise CNC positioning, patterns are formed during multiple painting and baking processes. This stone-imitation baking paint is overprinted on the metal surface of the aluminum plate.

PE stone grain aluminium sheet specifications

Aluminum base plate range:
Thickness: 0.18mm-2.5mm
Commonly used width: 1000mm, 1200mm, 1250mm, other special widths can be according to customer requirements; common alloys: 1100, 3003, 3004, 8011, 3105, 5052, other alloys can be according to customer requirements.

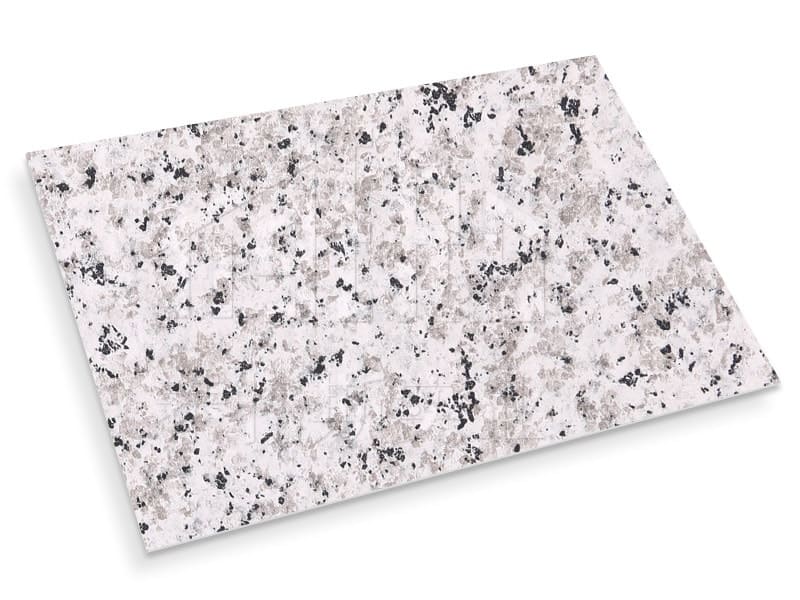

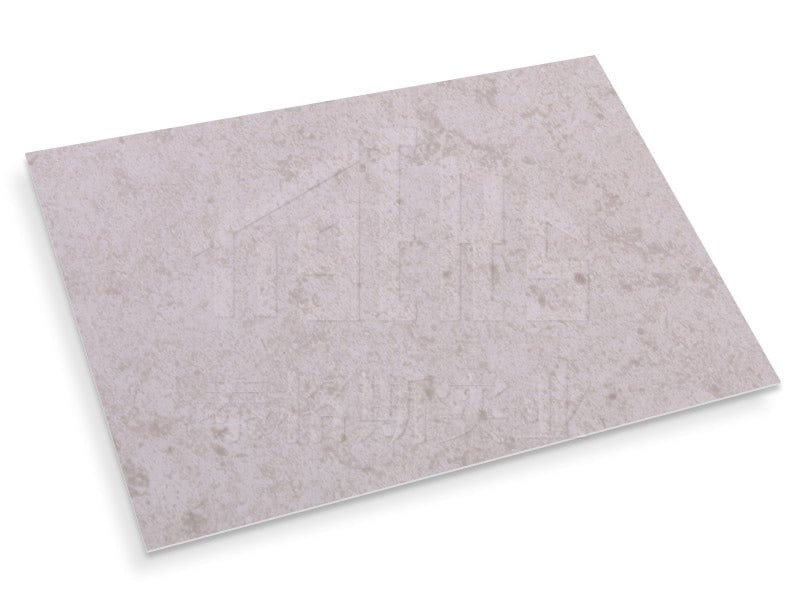

granite stone pre coated aluminium sheet coil
granite stone pre coated aluminium sheet coil

Advantages of PE stone grain aluminium sheet

The ink can be choosen are polyester, fluorocarbon system, which has high weather resistance.
Compared with stone, it is suitable for stamping and bending, and it can be processed into various shapes.
PE stone grain aluminium sheet The texture is clear and lifelike.

STEK color aluminum pre-coating workshop

STEK color aluminum pre-coating workshop
STEK color aluminum pre-coating workshop

The performance of PVDF color coated sheet/coils
Item Test Item Standard National standard Test Result
1 Color Difference ECCA T3 ΔE≤2.0 ΔE≤1.5
2 Gloss Difference ECCA T2 ≤10 ≤5
3 Coating Thickness ECCA T1 Two layers Min 23μm ≥25μm
Three layers Min 30μm ≥34μm
4 Pencil Hardness ASTM D3363 ≥HB HB
5 T-bend ASTM D4145 ≤2T ≤2T
6 Adhesion ASTM D3359 Grade 0 Grade 0
7 Impact ASTM D2794 ≥50kg.cm ≥50kg.cm
8 Boiling water Resistance GB/T17748 2h No change 4h No change
9 Solvent Resistance ASTM D2248 200 times paints remaining 500 times no break
10 Acidity Resistance ASTM D1308 5%HCL 24hrs No change No change
11 Alkali Resistance ASTM D1308 5%NaOH 24hrs No change color △E≤2.0 No change
12 Nitric acid Resistance AAMA620 △E≤5.0 △E≤5.0
13 Oil Resistance ASTM D1308 20#oil 24hrs No change No change
14 Salt Spray Resistance ASTM B117 4000hrs ≤Grade 1 No change
15 Abrasion resistance ASTM D968 ≥5L/μm ≥5L/μm
16 Dirt Resistance GB/T9780 ≤5% ＜5%
17 Color retaining GB/T16259 4000 hrs△E≤4.0 4000 hrs △E≤3.0
18 Gloss weaken Level 4000 hrs ≤ Grade 2 4000 hrs ≤ Grade 2
19 Chalking 4000 hrs No change 4000 hrs No change

Application of PE stone grain aluminium sheet

Case of landmark building decorated with aluminum panel
Case of landmark building decorated with aluminum panel

Aluminum Veneer Case

PE stone grain aluminium sheet can also be used to make painted aluminium channel, perforated metal screen panel, perforated aluminium ceiling panels, brushed aluminium sign, aluminium gazebo etc.

Trade show

expositions
expositions

Certificate of STEK Color Aluminum

Certificate of STEK Color Aluminum
Certificate of STEK Color Aluminum

STEK is a manufacturer of PE stone grain aluminium sheet , which has an advantage in price. The surface of the PE stone grain aluminium sheet produced is sprayed with fluorocarbon coating, and the processing technology is advanced. It can also produce real stone painted aluminum plates.
